Standard Ribbon Indoor/Outdoor Riser Central Tube Cables

Indoor/Outdoor Riser Ribbon Fiber Cable

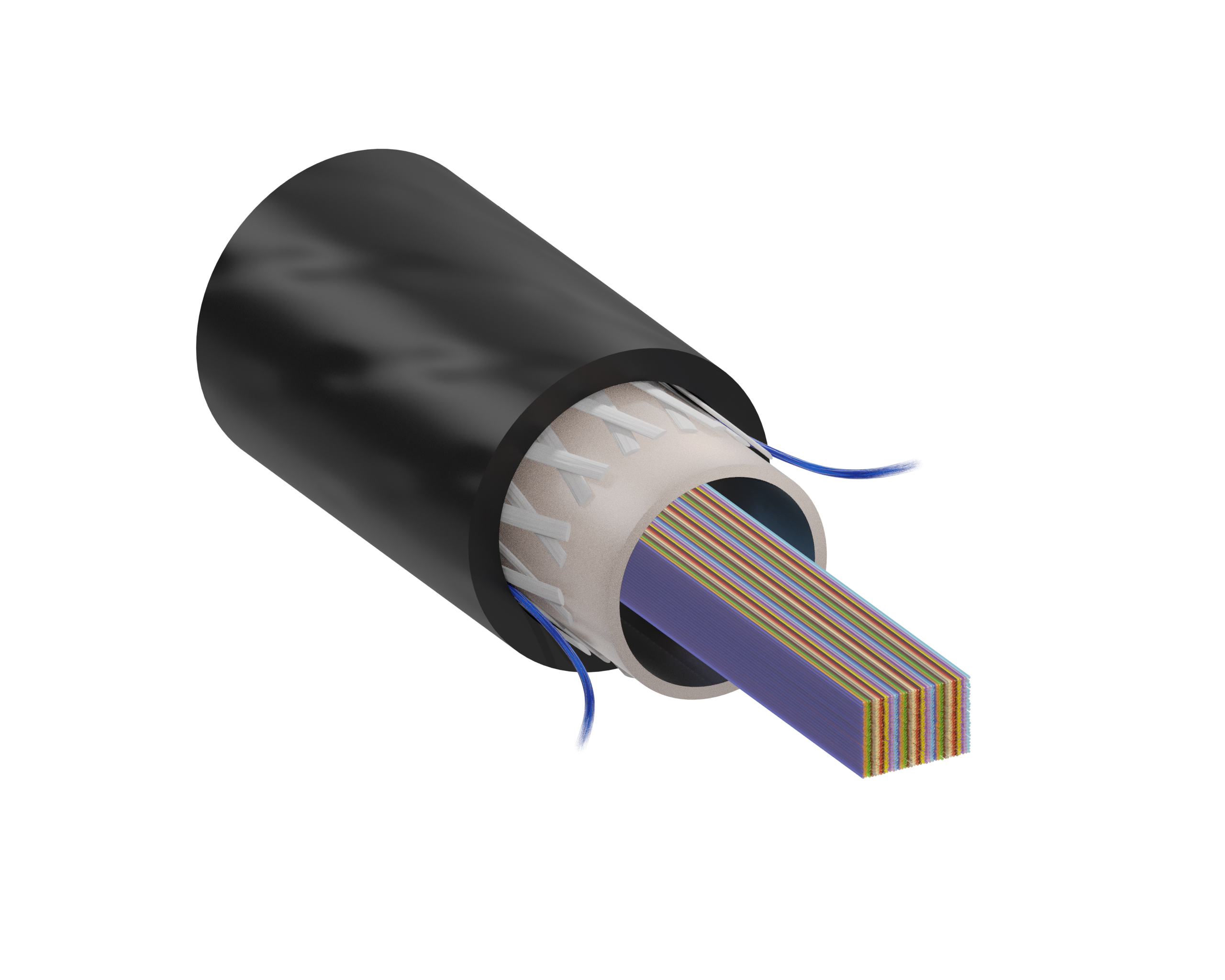

Sumitomo Electric Lightwave’s Standard Ribbon Indoor/Outdoor Riser Central Tube Cables feature 250μm color-coded optical fibers for easy fiber identification, and Sumitomo’s exclusive patented easy split and peel technology for easy fiber access, and unprecedented ease of handling and splicing. The 12-fiber ribbons enable connectorization with both MPO and all industry-standard connectors. The non-preferential bend axis allows for easy installation in space-constrained areas.

The cables include a dielectric strength member with a flexible, flame-retardant outer jacket in their all-dielectric cable construction that eliminates grounding or bonding. The cables also eliminate the need for installers to switch from an outside plant to a premise cable when transitioning from the outside plant to the inside plant. The cables meet OFNR and CSA FT4 specifications and are available in all fiber types.

Find a Distributor

Product Downloads

Product Information

Download

Recommended Procedures

Download

Optical Fiber Specifications

Download

Specifications

General

PropertySpecification
ApplicationIndoor/Outdoor
Jacket ColorBlack
Jacket MaterialPolyvinyl Chloride (PVC)
Cable StructureCentral Tube
Ribbon TypeStandard Ribbon
Metallic ElementNo Bonding/Grounding Required

Mechanical Characteristics

PropertySpecification
Maximum Tensile Load (During Installation)600 lb (2,670 N)
Maximum Recommended Service Load200 lb (890 N)
Maximum Compression Resistance124 lb/in (220 N/cm)
Minimum Bend Radius (During/After Installation)20/10 x Cable O.D.

Temperature Range

PropertySpecification
Operation-40 to +158°F (-40 to +70°C)
Storage & Shipping-40 to +158°F (-40 to +70°C)
Installation+32 to +140°F (0 to +60°C)

Standards

PropertySpecification
StandardsOFNR, FT4

Ordering Information

Fiber CountFiber SizeNominal Cable O.D. (in | mm)Nominal Weight (lb/kft | kg/km)Fibers Per Ribbon
12 – 48f250 μm0.62 (15.7)138.0 (205.0)12f
60 – 144f250 μm0.69 (17.4)156.0 (231.0)12f

Instructions: Create a part number by using this character set & codes.

SE- [ 1 ] RG [ 2 2 2 2 ] – [ 3 ]

[ 1 ] – Fiber Type[ 2 ] – Fiber Count (4-Digits)[ 3 ] – Fiber Attenuation Grades
8 –  PureAccess® G.657.A1 Bend Insensitive Single-Mode Fiber0012 – 12 Fibers
0024 – 24 Fibers
0036 – 36 Fibers
0048 – 48 Fibers
0072 – 72 Fibers
0096 – 96 Fibers
0144 – 144 Fibers  		B – Standard Single-Mode 0.40/0.30 dB/km (1310/1550 nm)

Accessories

Product NameDescription
CRC-001Cable Ring Tool, 0.25 – 1.625 in (4 – 28 mm) for End/Mid-Span Access
CRC-002Cable Slit Tool for End/Mid-Span Access
UCTS-001Central Tube Slit & Ring Tool, 0.19 – 0.73 in (4.75 – 18.5 mm) for End/Mid-Span Access
UCTS-001-BLADEReplacement Blade for UCTS-001
MA-2-KITRibbon Matrix Remover with Ribbon Splitter Tool (RS-M1), Board, Double-Sided Tape (Qty. 25), and Ribbon Color Code Chart (RCC-001)
MA-2-REFILLRibbon Matrix Remover with Board & Double-Sided Tape (Qty. 25)
JR-7Heated Jacket Remover with AC Adapter & Battery for Single Fibers & Up to 12-Fiber Ribbons
JR-M03Jacket Remover for 250 μm, 900 μm, and up to 3 mm Jacketed Single Fibers
FOS-01Lynx-CustomFit™ Fiber Optic Shears

Resources

Fiber Optic Ribbon Termination Resources
SP-F02-025: Ribbon Indoor/Outdoor Riser Cable Preparation
SP-F02-007: Ribbon Access SRP
SP-F02-011: Ribbon Splitting SRP
UCTS-001 Instructions
Optical Fiber Specifications
Sumitomo Electric PureAccess® Single-Mode Fiber Specification

Features

    • Patented Peelable Ribbon Matrix Material for
    • Easy Fiber Access 12-Fiber Ribbon Groupings for Ease and Compatibility with Multi-Fiber Connectors
    • All-Dielectric Cable Construction Requires No Grounding or Bonding
    • Flame-Retardant Outer Jacket
    • Meets OFNR and CSA FT4 Specifications
    • RoHS Compliant

Benefit

  • Color-Coded Fibers for Quick and Easy Identification
  • Robust in Indoor and Outdoor Environments
  • All Dry Cable Construction Contains No Messy Gels, Thereby Making the installation Faster
