Indoor Plenum Rated Tube Cables
Sumitomo Electric Lightwave’s FutureFLEX® Indoor Plenum Rated Tube Cables are multi-tube cables designed for use in constructing indoor tube cable infrastructures and are rated for plenum spaces.
The TP2 series are ideal for intrabuilding transitions where plenum-rated cables are required.
Product Downloads
Specifications
| Property | Specification |
|---|---|
| Non-Armored Tube Cables (TP2 Series) | UL/cUL/CSA NFPA 262 Plenum OFNP Tube Cables, Single Jacket |
| Armored Tube Cables (TP2-1 Series) | With Interlocked Galvanized Steel Armor (No Armor Overjacket) |
| OFNP Plenum-Rated | NFPA 262, cUL FT6, CSA FT6 Listed |
| Operation Temperature Range (Plenum-Rated) | +32°F to +158°F (0°C to +70°C) |
| Minimum Bend Radius (During/After Installation) | 20 / 10 x Cable O.D. |
| Standard Reel Length | 1,000 ft (+10 ft / -0 ft) |
| Maximum Reel Length | 1,000 ft (10 ft / -0 ft) |
| Metallic Elements (Armored Tube Cables Only) | Bonding / Grounding Required |
| M.O.Q. (Armored Tube Cables Only) | 1,000 ft |
| Inner Tube I.D. / O.D. | 5.5 mm / 8 mm |
Ordering Information
Standard Tube Cables – Inventory Products
(2, 4, 7, and 19 Tube Cables Only)
| Part Number | Tube Count | O.D. (in) | Max Weight (lbs/kft) | Max Tensile Load (lbs) | Std Length (ft) |
|---|---|---|---|---|---|

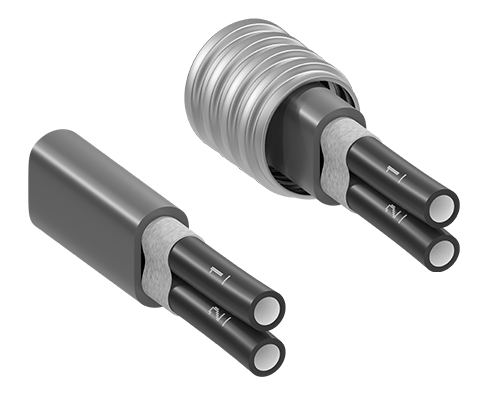

| TC02TP2 | 2 | 0.81 | 120 | 120 | 1,000 |
| TC02TP2-1 | 2 | 1.31 | 559 | 500 | 1,000 |

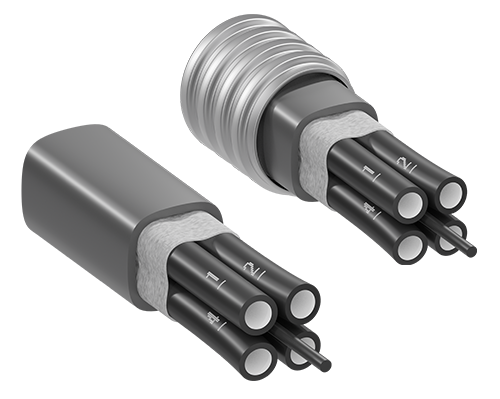

| TC04TP2 | 4 (CSM) | 1.00 | 210 | 200 | 1,000 |
| TC04TP2-1 | 4 (CSM) | 1.31 | 608 | 500 | 1,000 |

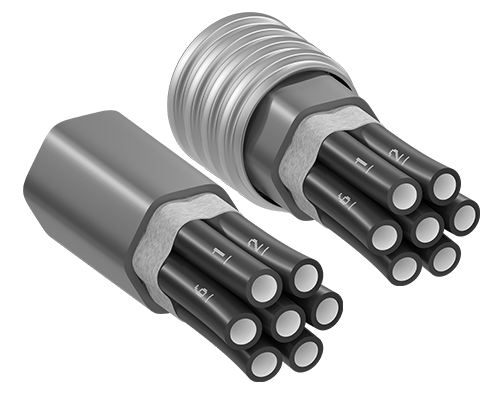

| TC07TP2 | 7 | 1.40 | 400 | 400 | 1,000 |
| TC07TP2-1 | 7 | 1.50 | 807 | 600 | 1,000 |

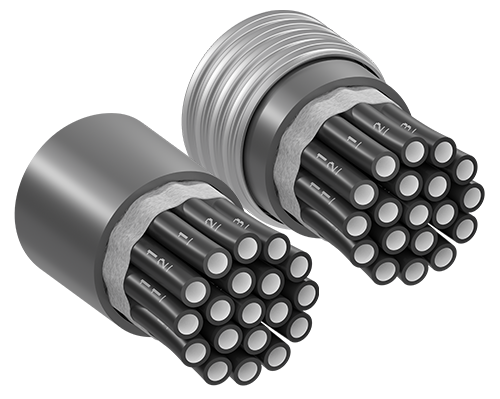

| TC19TP2 | 19 | 1.77 | 574 | 500 | 1,000 |
| TC19TP2-1 | 19 | 2.15 | 1,696 | 600 | 1,000 |
Special Order Only Tube Cables – Non-Inventory Products
(12 Tube Cables Only)
| Part Number | Tube Count | O.D. (in) | Max Weight (lbs/kft) | Max Tensile Load (lbs) | Std Length (ft) |
|---|---|---|---|---|---|

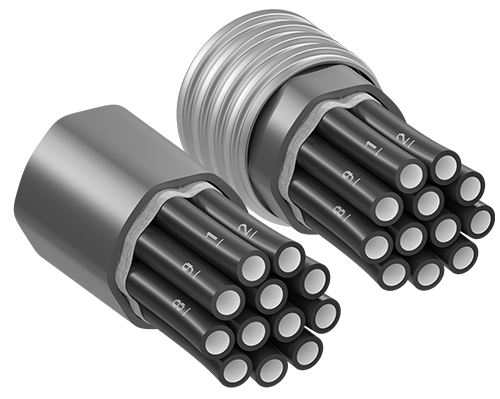

| TC12TP2 | 12 | 1.49 | 480 | 500 | 1,000 |
| TC12TP2-1 | 12 | 1.69 | 1,100 | 600 | 1,000 |
Resources
| Sumitomo Electric Product Specifications |
|---|
| SF-F04-003: TCxxTP2 PLENUM RATED (NFPA 262) JACKETED TUBE CABLE SERIES |
| SF-F04-004: TCxxTP2-1 PLENUM RATED TUBE CABLE SERIES (NFPA 262) WITH GALVANIZED STEEL INTERLOCKED ARMORING |
| Sumitomo Recommended Procedure |
|---|
| SP-F04-003: TUBE PRESSURE TESTING PROCEDURE |
| SP-F04-004: TUBE OBSTRUCTION TESTING PROCEDURE |
| SP-F04-008: TUBE CABLE INSTALLATION PROCEDURES |
| SP-F04-029: PLENUM-RATED JACKETED TUBE CABLE TCxxTP2 INSTALLATION PROCEDURE |
| SP-F04-039: ARMORED TUBE CABLE INSTALLATION PROCEDURES |
| LFI Resource Portal |
|---|
| LFI Resource Portal | Sumitomo Electric Lightwave Corporation |
Features
- Low-Smoke, Flame-Resistant Jacket Materials
- Cable Length Markings at 2-foot Intervals
- Tube ID Numbers Marked at 2-inch Intervals
- Ripcord Is Provided to Aid in Outer Jacket Removal
- NFPA 262 / cUL FT6 / CSA Listed
- Meets ICEA, TIA, and UL Standards
