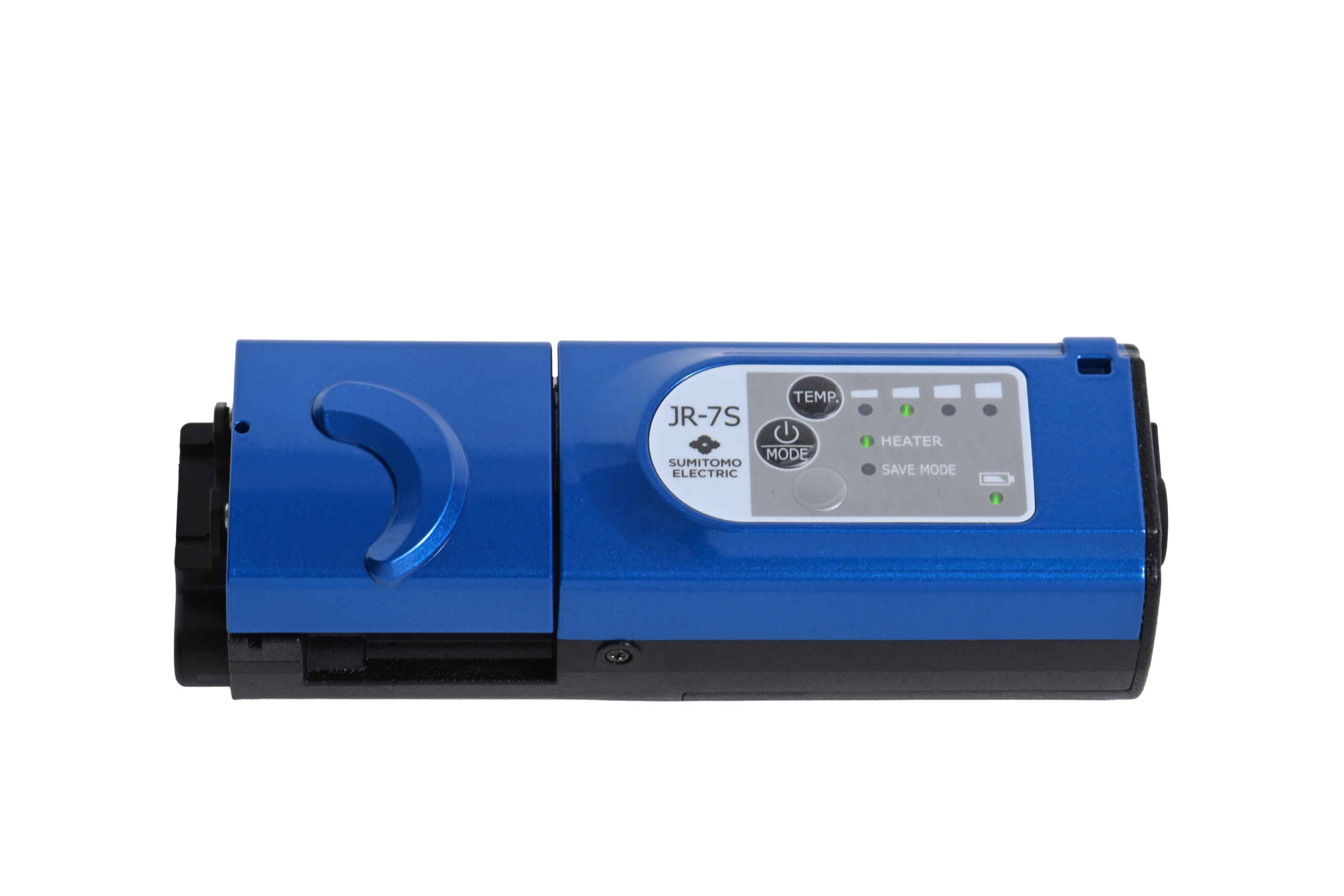

JR-7S Thermal Jacket Remover
The JR-7S represents the latest innovation in fiber optic preparation technology. This advanced universal thermal jacket remover is specifically engineered to handle the challenges of 250/900μm fiber, providing unmatched efficiency for technicians in the field.
Perfect for telecommunications professionals, data center technicians, and fiber network installers who demand reliability and efficiency. The JR-7S pairs seamlessly with the lineup of Lynx-CustomFit™ Splice-on Connectors.
Product Downloads
Specifications
| PROPERTY | SPECIFICATION |
|---|---|
| Applicable Fiber | Coating Thickness Single Fiber: 250 to 900um |
| Power Source | 1) AC Input Voltage AC 64 – 90V, 50/60Hz Adapter Output Voltage DC 12V 2) DC Input (Power Supplied from Fusion Splicer) Output Voltage DC 9 -15V 3) Battery Operation (with BU-JR) Battery Voltage: 7.4V Battery Capacity: 1620mAh |
| Number of Removal Cycles | Approx. 600 (Power Save Mode) |
| Features | 1) Temperature Settings: 4 levels (Min. 80℃ to Max. 140℃) 2) Normal Mode / Power Save Mode |
| Environmental Conditions | Operating Condition: Temperature: 0° ~ +40° C, Humidity: 0% to 95% (Non-Condensing) Storage Condition: Temperature: -40° to +60 °C, Humidity: 0% ~ 95% (Non-Condensing) |
Physical Characteristics
| PROPERTY | SPECIFICATION |
|---|---|
| Height | 1.4 in (37.5 mm) |
| Width | 1.8 in (46 mm) |
| Depth | 4.7 in (120.6 mm) |
| Weight (Including Battery) | 0.44 lb (200 g) |
Ordering Information
| PART NUMBER | DESCRIPTION |
|---|---|
| JR-7S | Heated Jacket Remover with AC Adapter & Battery for Single Fiber |
| JR7S-BL | Replacement Blade for JR-7S |
| BU-JR | Replacement Battery for JR-7S |
Features
- Precision-engineered to strip stubborn fiber coatings with minimal effort
- Dual-action mechanism removes both 250um and 900um coatings in a single pass
- Thermal technology ensures clean stripping without damaging the underlying fiber
- Ergonomic design for comfortable extended use
- Reduces preparation time by up to 40% compared to traditional methods
- IPx2 Water protection and shock-resistant
- Field replaceable blade and battery for easy maintenance
